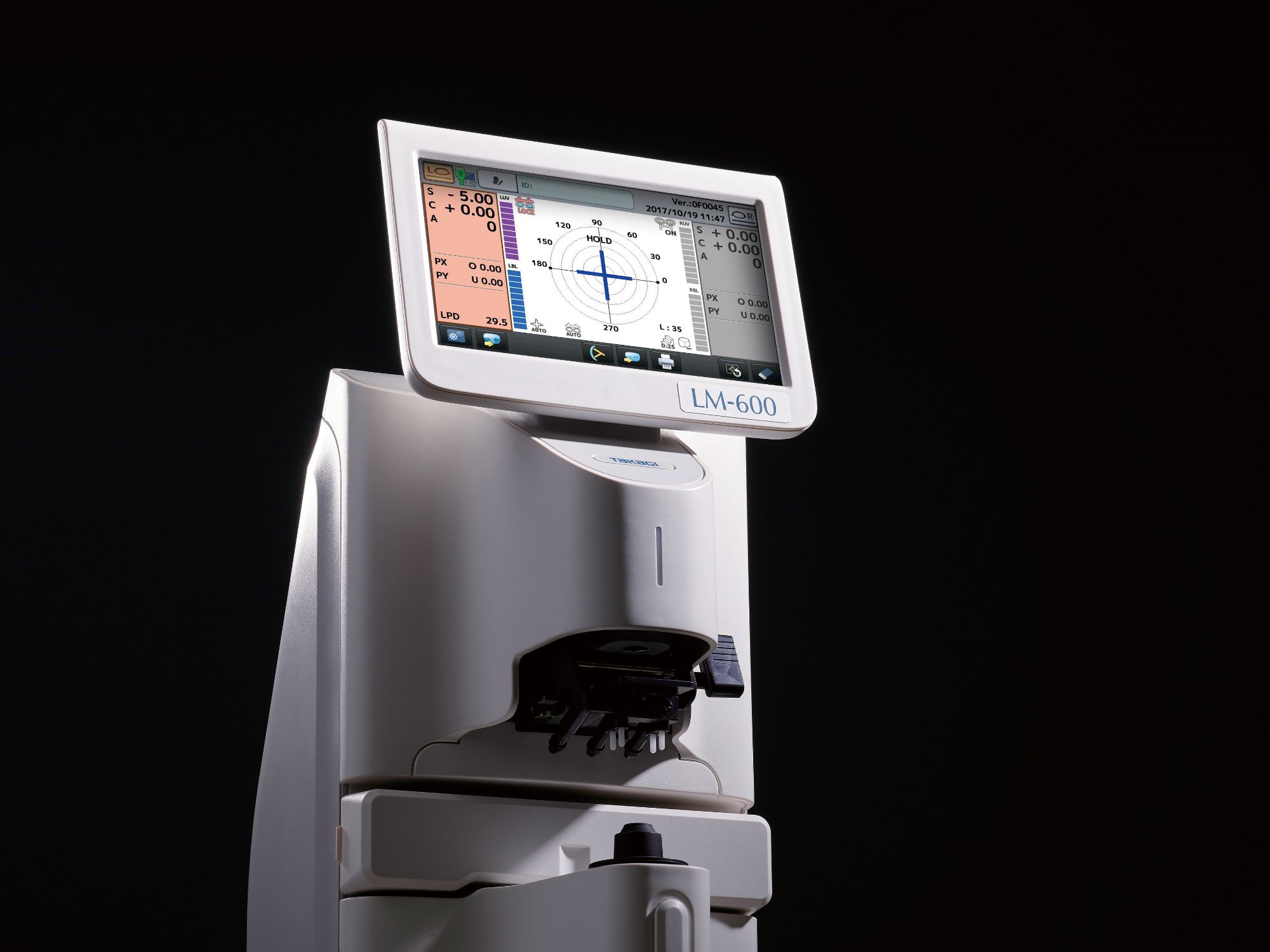

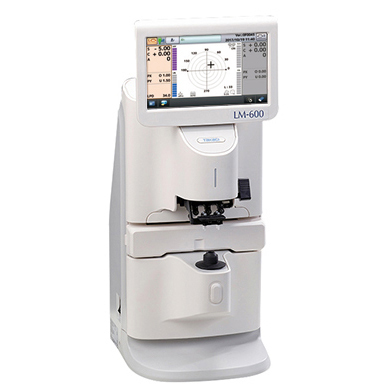

Takagi LM-600 Auto lensmeter

Wavefront technology with Hartmann sensor ( 117 points )

Using 117 points Hartlann sensor wavefront technology in the LM-600, measurement accuracy of vertically narrow progressive lenses has markedly improved .

  • Simultaneous measurement of UV/Blue light and power
  • Lens mark recognition support

  • Fully Automated

  • Easy to use

  • Automatic Lens Analysis

  • Complete Visual Analysis

  • Side By Side Progressive Lens Analysis

  • Automatic measurement

  • Freeform lens analysis

  • Single vision measurement

  • Progressive lens analysis

  • Comparison progressive lenses

Details

  • Measurement range
    Spherical power : +-25D
    Cylindrical power : +-10D
    Axial angle : 0-180°
    Additional power ( ADD) : -2 to +10D
    Prism power : 0-15
  • Increment
    Diopter : 0.01 , 0.06 , 0.12 , 0.25D
    Prism : 0.01 , 0.06 , 0.12 , 0.25D
  • Wavelength
    535nm
  • Diameter lens
    20-120mm
  • Measurement object
    Spectacle lens , contact lens
  • Transmittance
    UV : peak of wavelength is 375nm
    Blue light : peak of wavelength is 465nm
  • Display
    7" TFT color with touch screen
  • Printer
    Therma printer
  • Size
    188 ( W) x 240 ( D) x 430 ( H) mm
  • Exernal communication
    RS-232C , USB3.0 , ethernet
LM-600-Brochure.pdf
