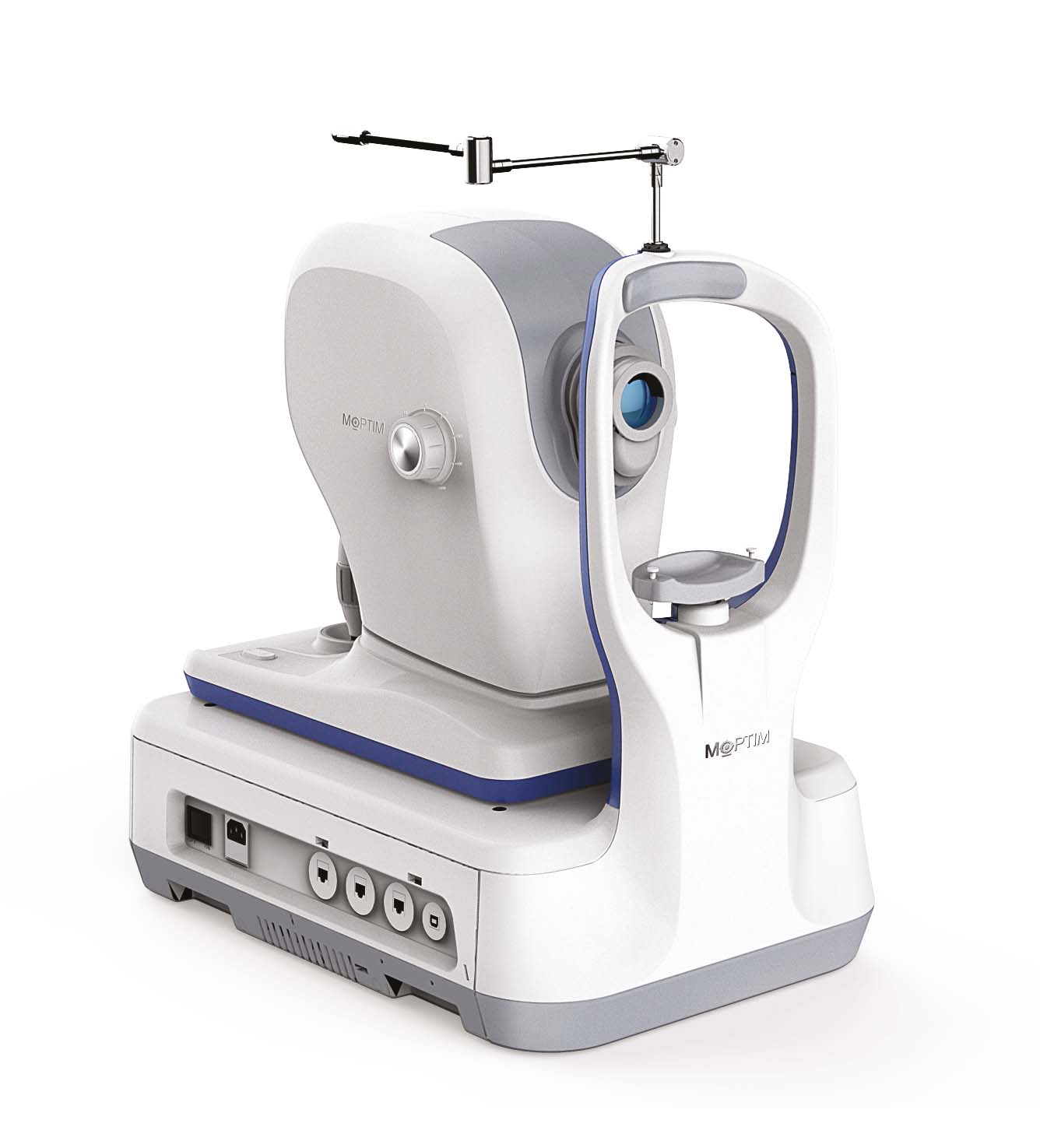

MOCEAN-3000 OCT
Mocean 4000 captures 100 images in less than one second, and merge them together to create a high definition image with minimized speckle noise 5 μm axial optical resolution (3 μm digital). High definition OCT imaging reveals hidden pathological changes.
-
SUPERIORITY DUE TO ORIGIN
-
HD SLO + EYE TRACKING
-
45° wide range live SLO imaging
-
Ultra fine quality retinal imaging using averaging technique (up to 50 images)
-
SLO-based real-time retinal tracking effectively reduces artifacts caused by eye movement
Front Segment Optical Coherence Tomography (OCT):
- Auto Pachymetry,
- Corneal Flap Measurement after laser refractive surgery (LASIK),
- Ocular angle analysis,
- AIOP ,AOD ,TISA
Front Segment Optical Coherence Tomography (OCT) Wide Scan:
- Angle to Angle 16mm
- HD Line scan,
- 6 Line Radial Scan
- AOD
Fixation target:
- Internal fixation(target position can be changed)
- External fixation
All In One PC an integral part of the device / Specs:
- i7 8th generation Intel
- 16GB Ram
- 1 0S0GTC 4GB ATI Graphic
- 120SSD
- 1TB SATA
- 24” IPS Full HD
- 3.0USB
- 3 years warranty for the PC
Optical Micro Angiograpghy (OMAG Algorithm)
Automatic detection of a minimum of 8 retinal layers
- Encoded
- Vitreous
- Superficial
- Deepfcial
- Avascular
- Choriopapillaris
- Choroid
- Intermediate
and Custom defined from Operator Layer
- VASCAN ESSENTIAL with 3X3 , 12X8 Modus
- VASCAN ADVANCE with 3X3 6X6 8X8 12X8
- Modus and Quantitative Statistical Analysis ( Density , FAZ, Non Flow)
- Minimal pupil size: 3.0mm YES
- Focus adjustment range: +20D and -20D
Real-time widefield SLO image
HD OCT imaging system at 80,000 A-SCANS/S
Deep Choroidal Imaging (DCI)
